LEFT CORE · HIGH FLOW
Fewer water passages.
Taller air-channel fins.
A high-flow structure with fewer water passages and high fins in the air channels.
CUSTOM MANUFACTURING · OEM / ODM
Your specification.
Our manufacturing.
Intercoolers, cooling components and aluminum piping developed around your drawing, sample or application requirements.
CUSTOM PROJECT · LARGE INTERCOOLERS
Custom-made large intercoolers.
Large-format cores, fabricated aluminum end tanks and welded connections. Built around the dimensions and layout of your project.
A larger format. A custom layout.
Completed intercooler shown alongside a production batch.

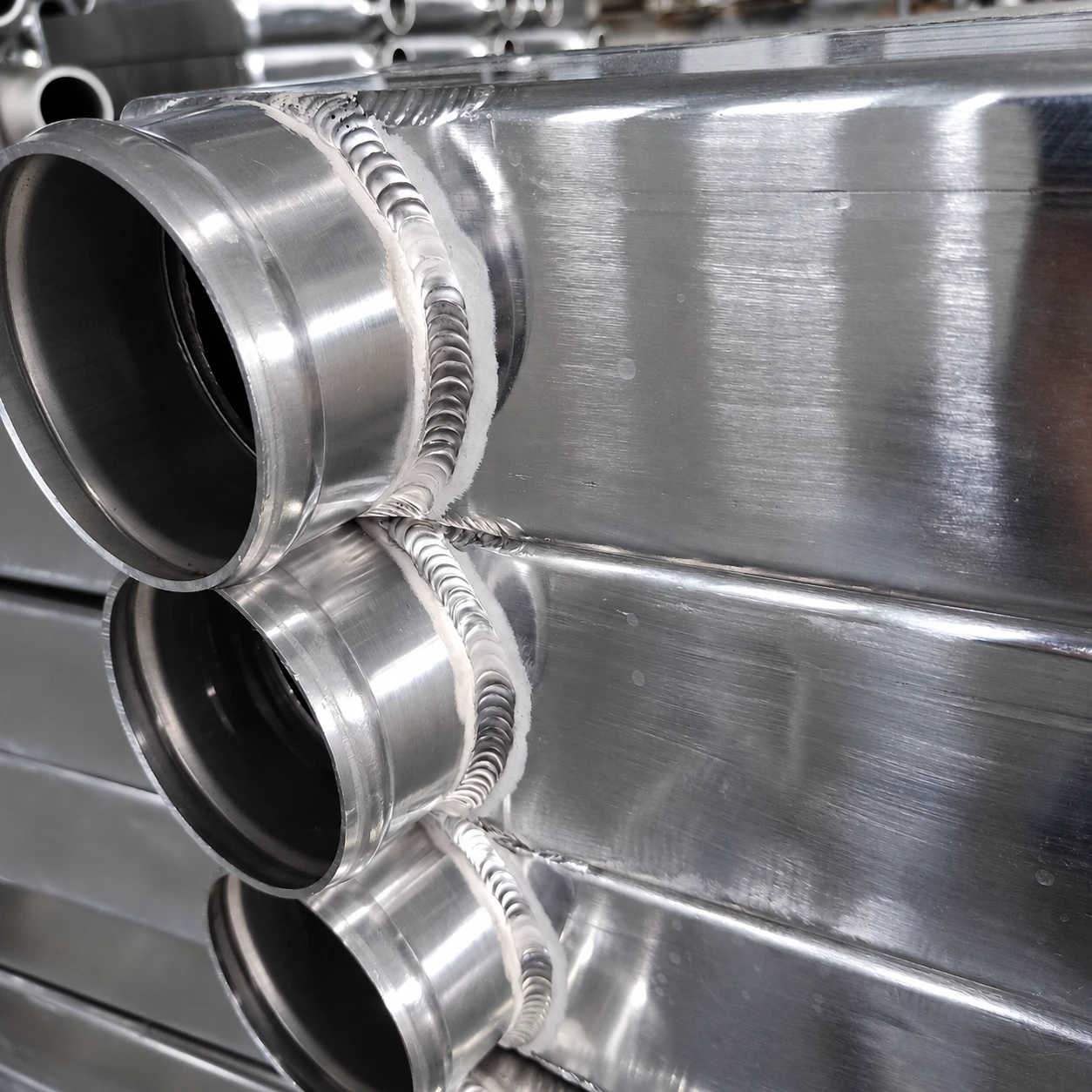

Weld detail, up close.
Fabricated end tanks and welded inlet / outlet connections.
From specification to production.

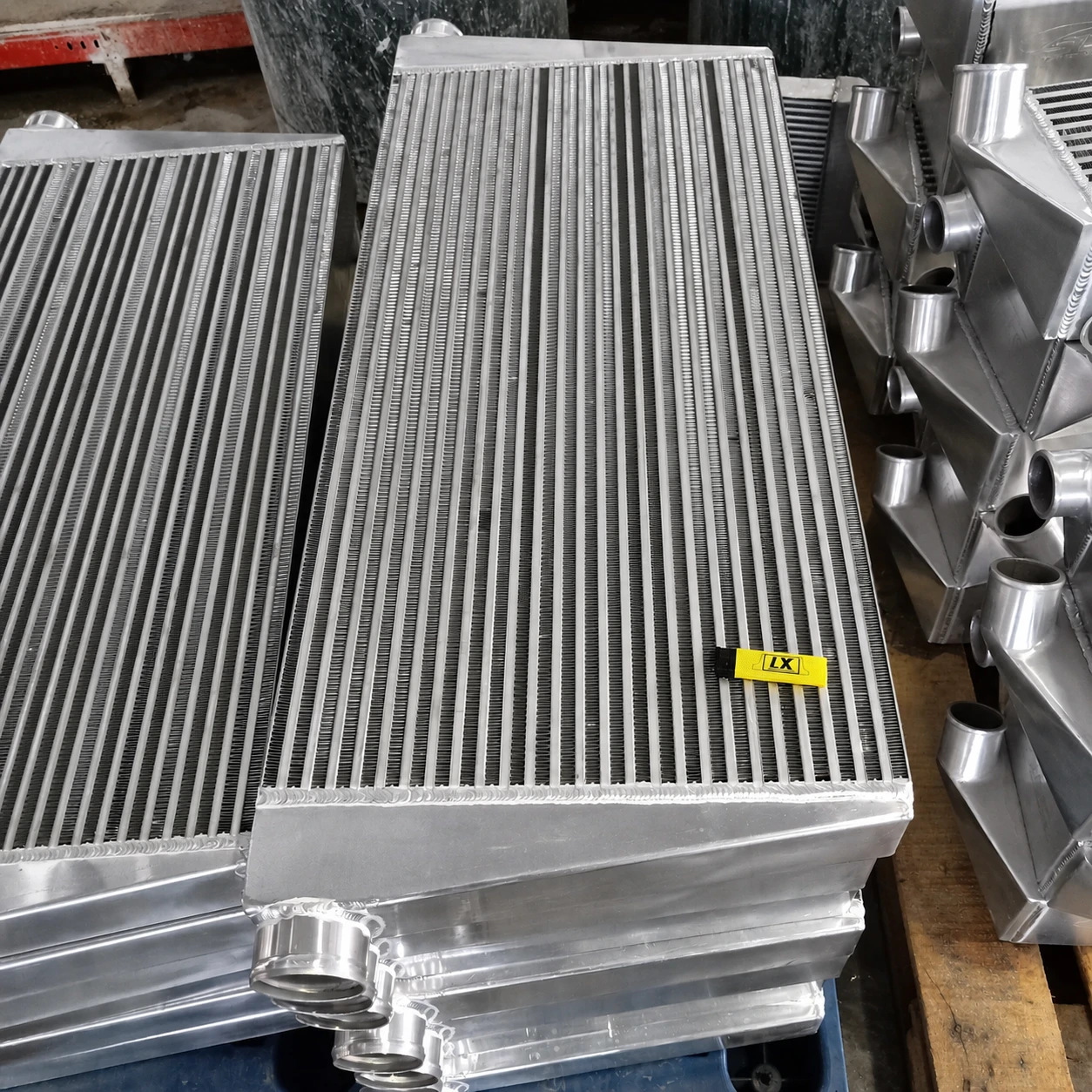

Large cores and end tank assemblies photographed at our factory.
Send your required core size, installation space, connection positions and order quantity.
Discuss a custom large intercoolerCUSTOM PROJECT · WATER-TO-AIR

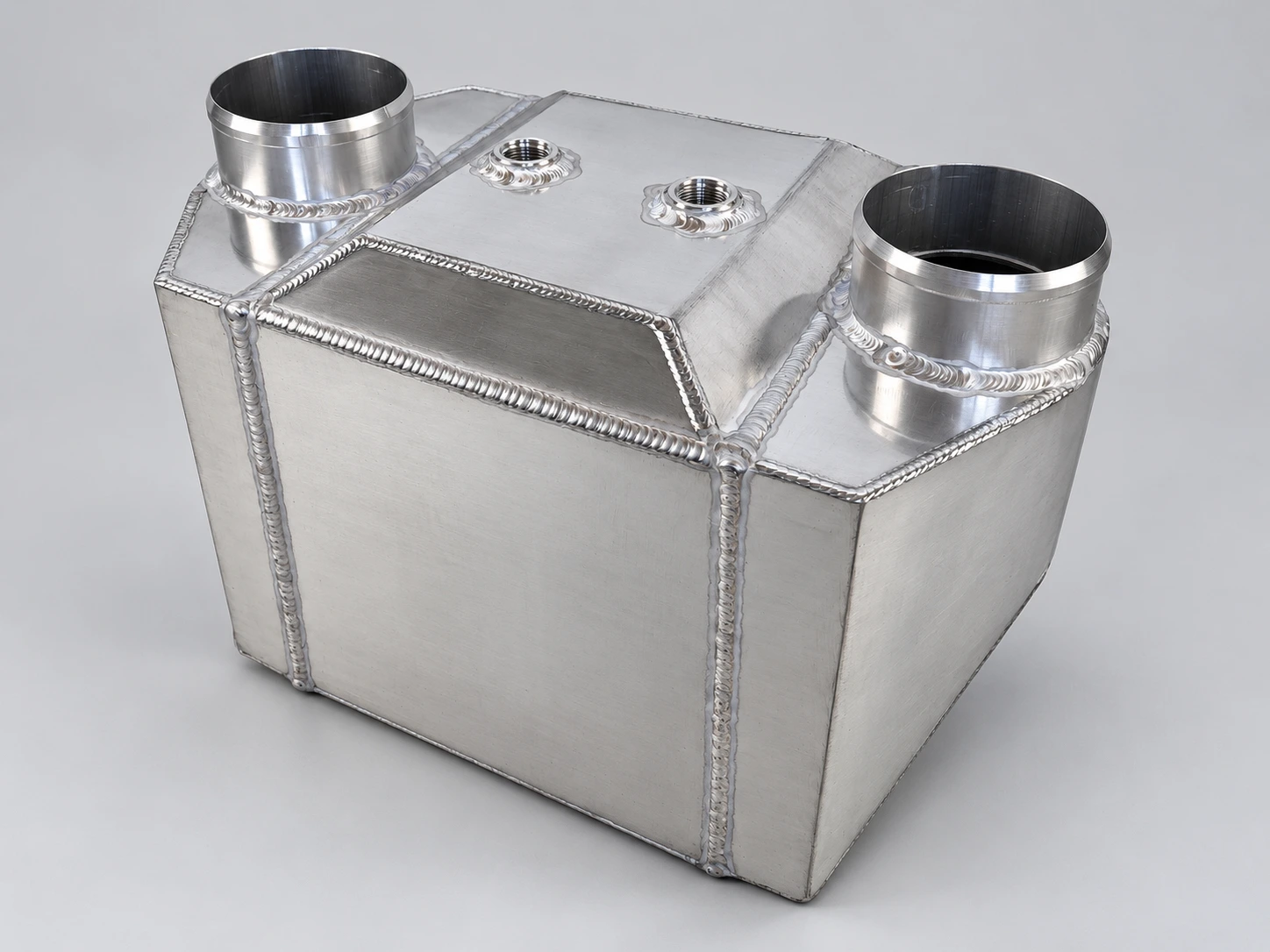

Custom-made large
water-to-air intercoolers.
Fabricated aluminum housings with charge-air and coolant connections. These manufacturing examples show completed units, batch production and welding in our factory.
A large format.
Your connection layout.
Welded aluminum housing with separate air and water connections. Dimensions and connection positions are specified for each project.
Built for your project.

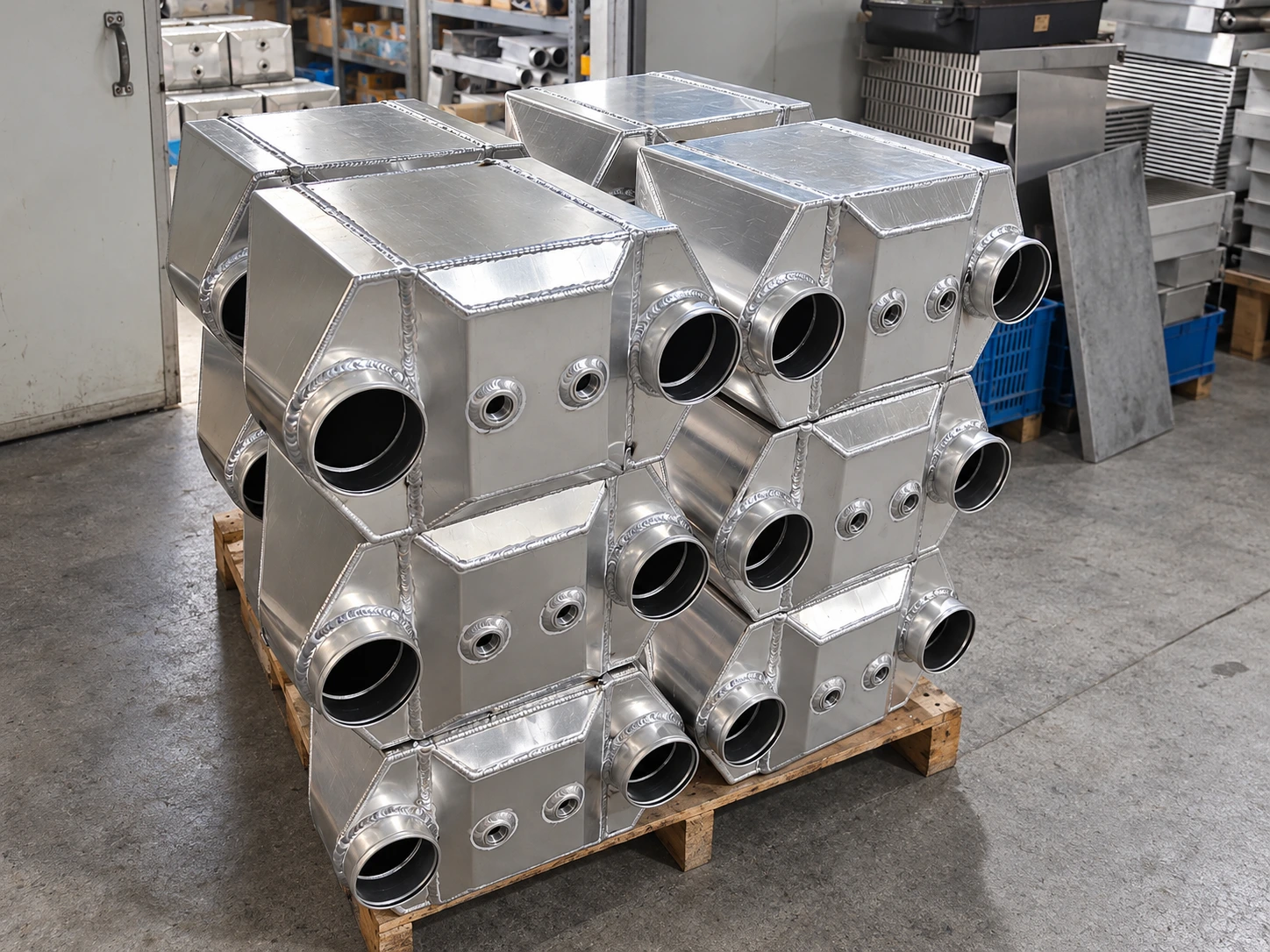

Completed aluminum assemblies prepared as a production batch.

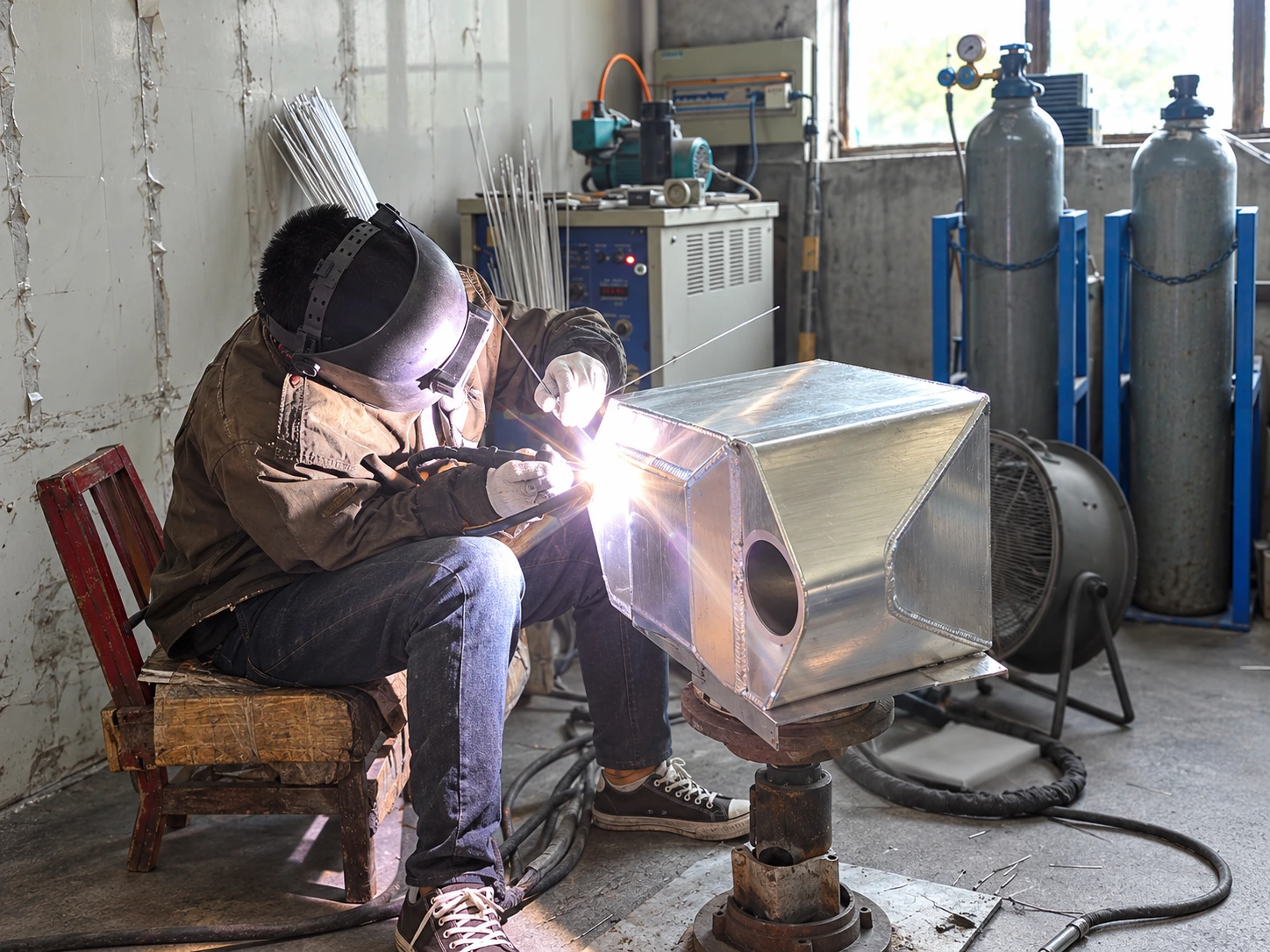

From fabrication to assembly.
Welding a large aluminum intercooler housing in our workshop.
Share your drawing, installation space, air and coolant connection requirements, and order quantity.
Discuss a custom water-to-air intercoolerWATER-TO-AIR CORE DESIGN
Flow and cooling.
A deliberate balance.

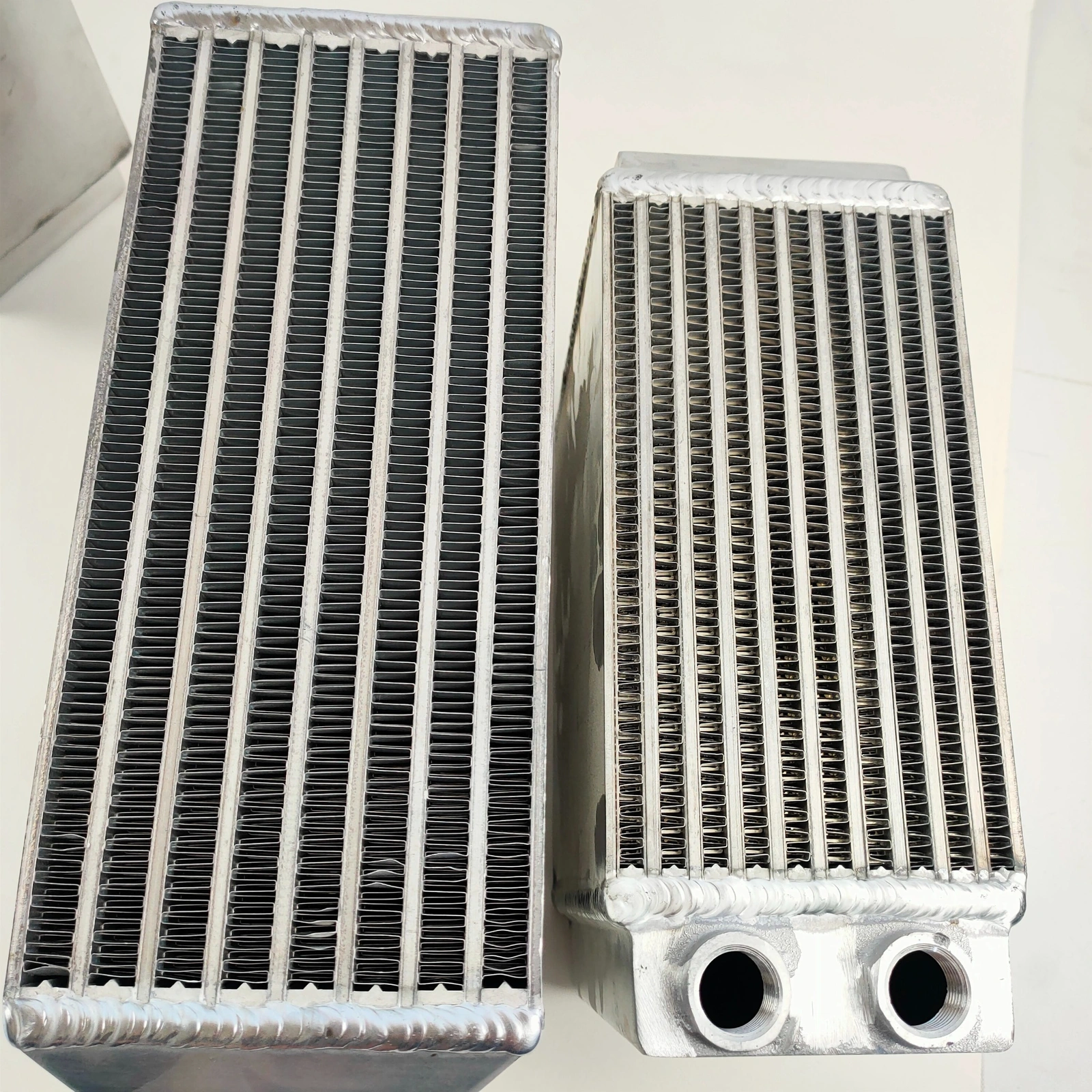

Water passage count and air-channel fin height are part of the core specification. These two examples show different priorities in a water-to-air intercooler design.
Fewer water passages.
RIGHT CORE · COOLING PRIORITY
More water passages.
Higher pressure loss.
Increasing the number of water passages provides more effective cooling, with increased pressure loss as the trade-off.
Discuss the balance of flow, cooling performance and pressure loss for your application.
Discuss your core specificationDefine
Application, drawing or reference product.
Sample
Confirm the product and project requirements.
Small batch
Agree on quantities and production details.
Scale
Build a repeat supply relationship.
PROJECT OPTIONS
Built around your requirements.
From an existing product to a new specification, we review feasibility, quantity, development scope and delivery expectations together.
Product specification
Discuss core construction, dimensions, connections and pipe configuration.
Compare Tube-and-Fin / Bar-and-Plate coresBrand presentation
Discuss logo application, finish, labels and private-label packaging.
Production scope
Define sample needs, batch quantities and the path to repeat orders.
What should you send?
Product type, vehicle or application, a drawing or reference, estimated quantity, customization needs and target timing. Attach drawings or photos to your email.
Start a custom manufacturing inquiryPACKAGING IN PRACTICE
Protection.
Presentation. Preparation.
Manufacturer-supplied packing examples. The packaging method, labeling and carton requirements are agreed for each order.
OIL COOLERS · E-COMMERCE RETAIL
Reinforced retail packaging.

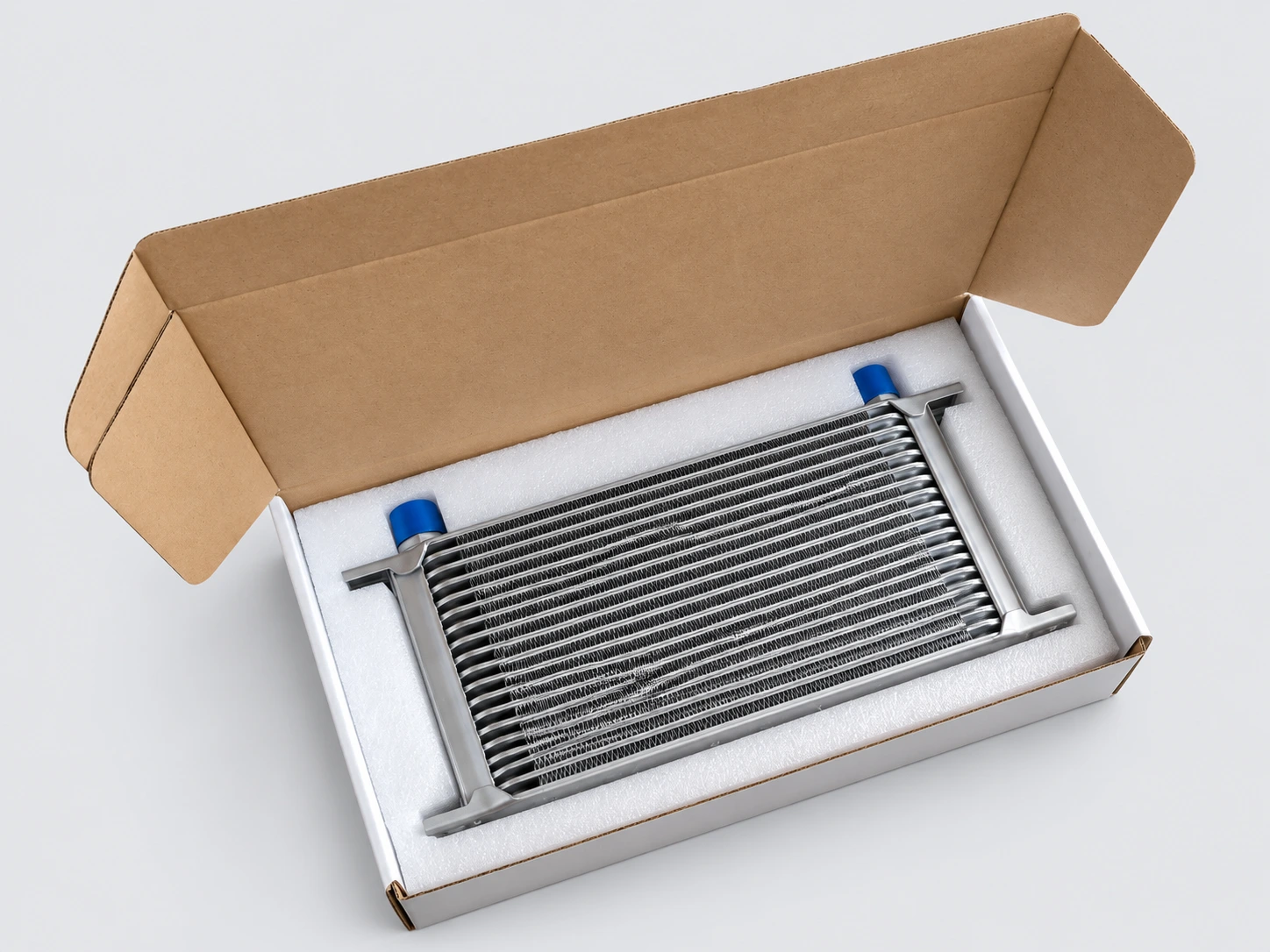

Individual carton packaging with a fitted foam insert and foam top cover, suitable for oil cooler retail orders.
Support around the cooler.
The foam insert holds the cooler and its mounting brackets inside the carton.

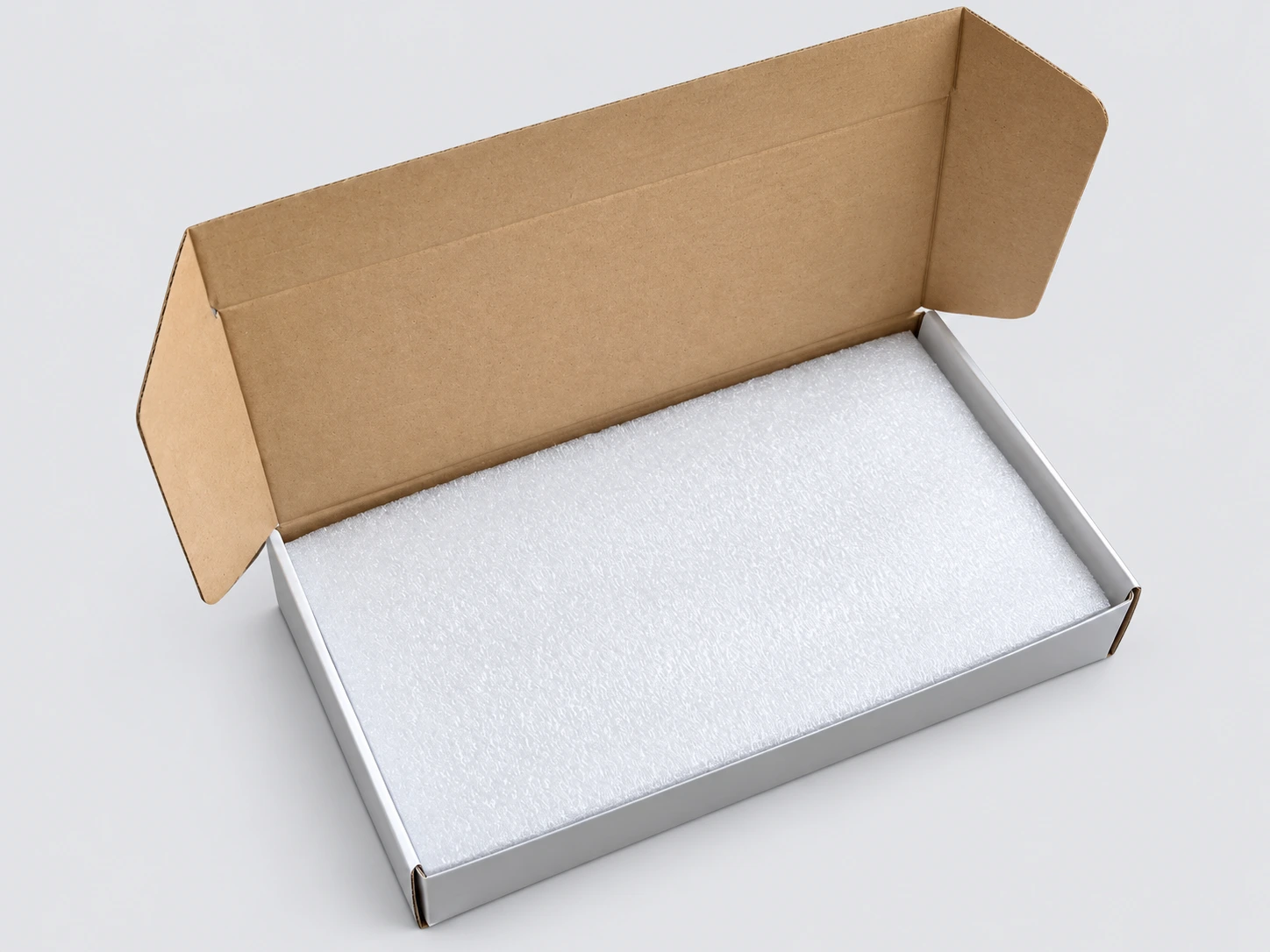

An additional protective layer.
A foam sheet covers the packed cooler before the carton is closed.
Discuss retail quantities, carton labels and private-label packaging with your order.
Ask about retail packagingLET’S BUILD TOGETHER
Your next project starts here.
Tell us your application, quantity and specifications. We’ll discuss a solution that fits your project.

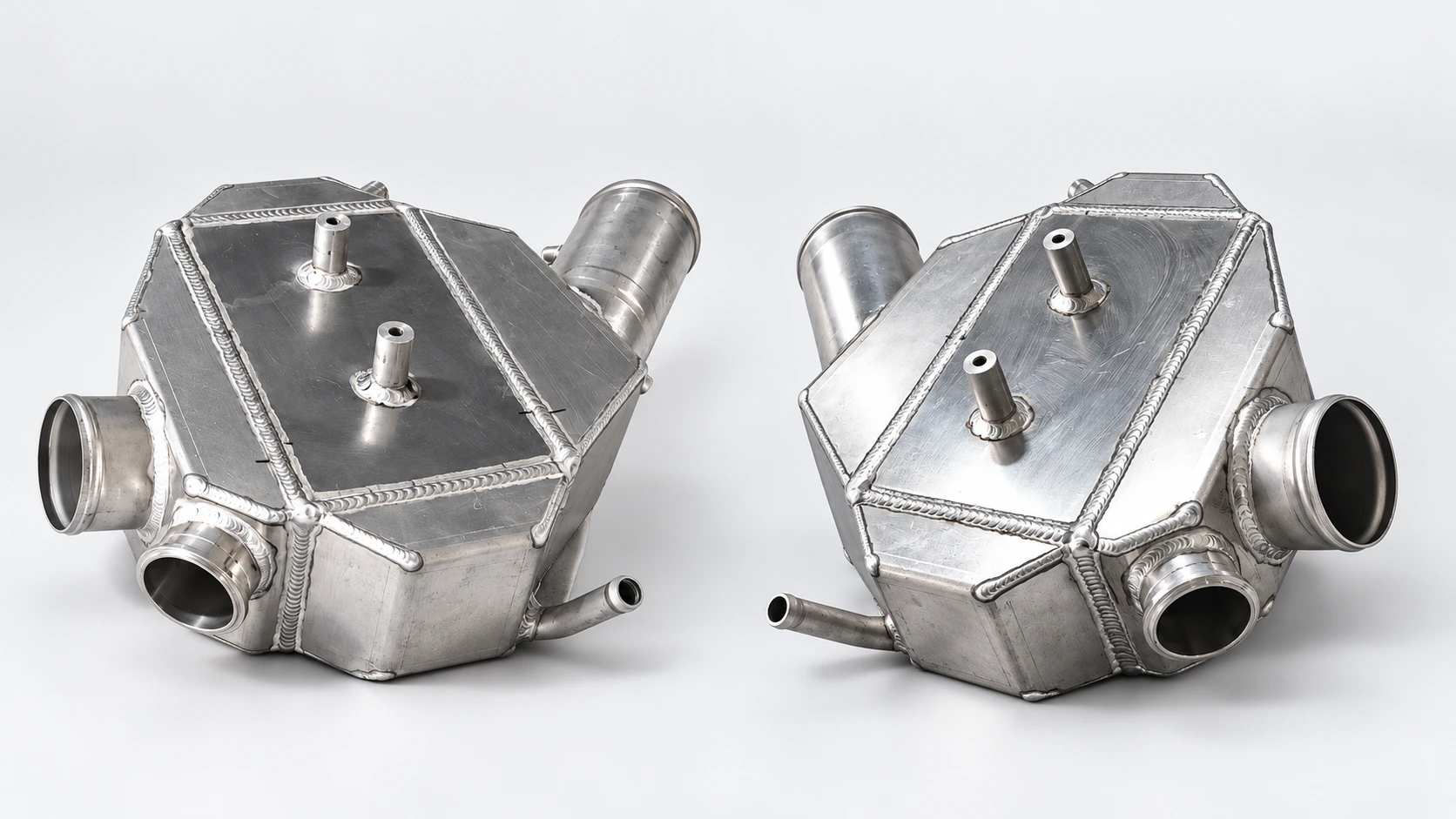

CUSTOM-MADE AIR-TO-WATER
Two complementary intercoolers. One pair.
Custom welded aluminum housings with BOV and sensor adapter interfaces.
View the pair and adapter details
